Slurries generally behave the same way as thick, viscous fluids, flowing under gravity, but also pumped as needed. Slurries are divided into two general categories: non-settling or settling.

Non-settling slurries consist of very fine particles, which give the illusion of increased apparent viscosity. These slurries usually have low wearing properties, but do require very careful consideration when selecting the right pump because they do not behave in the same manner as a normal liquid does.

Settling slurries are formed by coarse particles that tend to form an unstable mixture. Particular attention should be given to flow and power calculations when selecting a pump. The majority of slurry applications are made up of coarse particles and because of this, have higher wear properties.

Below are common characteristics of slurries:

• Abrasive
• Thick consistency
• Can contain a high amount of solids
• Usually settle quickly
• Require more power to operate than a “water” pump

SLURRY PUMP SELECTION

Many types of pumps are used for pumping slurries, but the most common slurry pump is the centrifugal pump. The centrifugal slurry pump uses the centrifugal force generated by a rotating impeller to impact kinetic energy to the slurry, similar to how a water-like liquid would move through a standard centrifugal pump.

Slurry applications greatly reduce the expected wear life of pumping components. It’s critical that pumps designed for these heavy-duty applications are selected from the start.

The post WHAT IS A “SLURRY”? appeared first on AVAengineering.

With small vertical sump pumps is it possible to hang the pump in the sump by the lifting bracket provided. Larger units are normally bolted to a permanent base plate. Pump bearings are in a housing above the base plate for accessibility and protection.

All pumps can run dry intermittently. Pumps with metal pump parts can run dry for an unlimited length of time. Special designs giving extended length, with the bearings below the base plate, are available on request.

2.ROBUST DESIGN

The heavy-duty pump shaft is of cantilever design, hanging below the bearing housing. There are no submerged bearings, stuffing box or shaft seals. This design ensures minimum maintenance and eliminates the need for water flushing.

The pump shaft is mounted in grease lubricated roller bearings. Impeller clearance is maintained by external axial adjustment of the shaft/bearing assembly. Bearings have double seal protection against contamination.

3.HIGH-QUALITY PARTS

Standard pumps are supplied with parts in wear resistant natural rubber or High Chrome white iron alloy, with a nominal hardness of 600 BHN. Other wear part materials available include elastomers in synthetic rubbers and polyurethane and metals such as 316 stainless steel and CD4MCu. Parts in different materials are fully interchangeable and can be combined for optimum life.

4.WET END

The “wet end” parts have large material sections for extra-long wear life and are designed for the toughest of applications. Single volute and generous solids passage through the pump ensure safe and clogless operation. The “wet end” assembly is suspended from a tubular column below the bearing housing.

5.DRIVE

Pumps can be supplied with a V-belt drive, motor and drive guard. The motor is mounted vertically on an adjustable motor plate fitted beside the bearing housing.

6.MOTOR SIZE

Motor size and V-belt drive vary with the pump application. Minimum data required for an approximate pump, speed and drive motor selection are:

• Slurry flow rate
• Slurry density
• Total discharge head

The post What is vertical slurry pump? appeared first on AVAengineering.

The Mission MAGNUM I has been engineered for the toughest jobs in drilling, production, well-servicing, and industrial applications.
The revolutionary design of the MAGNUM I provides supreme-duty performance in all types of fluid pumping operations. Although it offers greater capacity and higher heads, the MAGNUM I remains the competitive pump of choice for aggressive applications.
The MAGNUM I is more powerful, more durable, and easier to maintain than any conventional pump in use today.

The Magnum has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The Magnum is available in Magnachrome, hard iron, stainless steel, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).
Typical Applications

• Barite, ferric oxide, and mineral oil
• Base drilling muds
• Glass fibers
• Sugar processing
• Ash or coal conveyers
• Cement
• Mine de-watering
• Lime slurries
• Kaolin clay
• Crystalline forms

According to the different working conditions, Mission centrifugal pumps can be used as Frac discharge pump, Frac suction pump, Oil drilling centrifugal pump, electric centrifugal transfer pump, Skid mounted mixing pump, Transfer pump, Trash pump, Grinding pump, Circulating mud pump, Centrifugal sludge pump, Drilling fluid centrifugal pump, Horizontal directional drilling pump, Denver pump, Filling pump, Feeding pump, etc

Design Features

• Versatile stuffing box
• One piece casing
• Casing gasket receded for protection
• Back vanes reduce collection of solids at stuffing box
• Long-life, no-adjustment mechanical seal available for near zero leakage
• Replaceable shaft sleeve
• Lip seals for maximum bearing protection (Labyrinth seals optional)
• Duplex angular contact bearings
• Thicker, stronger concentric casings
• Full pipe diameter entrance for minimum turbulence and maximum efficiency
• Single row roller bearings for increased bearing life
• Easy accessible front access drain
• Reduced high bearing loads

The post Mission Magnum I Pump 8x6x14 and Centrifugal Mud Pump appeared first on AVAengineering.

Design Characteristics

The AVA Engineering  Slurry Pump range is a cost-effective solution for medium-duty slurry applications, and the design allows for easy maintenance

Slurry Pump Features

Bearing assembly:
• Short overhang on shaft design – assists with shaft deflection as well as vibration
• Dimensional interchangeability to suit heavy-duty bearing assemblies

Liners:
• Ease of maintenance design allows interchangeability with High-Chrome, Elastomer, Rubber, Polyurethane, Ceramic and various other material options

Casing:
• Solid casing design
• Ease of rotation and maintenance on casing with improved clamp design

Impeller:
• Various impeller designs to suit any application
• Impeller adjustment via bearing assembly
• Expulsion vanes on impeller shroud, minimises

Stuffng box
• Various materials to suit any application

Sealing options:
• Stuffng box (full flow, low flow and ultra flow)
• Expeller seal,
• mechanical seal

The post 1.5/1B-AHR slurry pump headed to Germany appeared first on AVAengineering.

Specification:

Size (discharge): 1″ to 22″ Pump
Capacity: 10.8~ 5400 m3/hr
Head: 6m ~ 135 m
Handing solids: 0 ~ 650mm
Concentration: 0%~ 70%
Material:High chrome alloy,Rubber,Stainless steel etc.

Detailed specification:

1. Horizontal, cantilevered, centrifugal, single stage slurry pump.

2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.

3. Wear resistant and anti abrasion wet parts: High chrome alloy and rubber etc. They are completely interchangeable with each other.

4. Easily replaceable liners: Liners are bolted to the casing.

5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.

6 Discharge direction can be positioned at intervals of 45 degrees.

7. Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.

8. Sealing type: pcking seal,impeller sealing and mechanical seal.

9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments

The post who is wholesale slurry pump in China? appeared first on AVAengineering.

^{AVA Engineering® 6}-inch slurry pump (outlet 8-inch, inlet 6-inch) is the most popular pump in the market. It is not small and not too big can handle variable applications. Enough to do lots of heavy duty work.

In combination with the D, E, and EE Type bases, 8/6 slurry pumps become the Model8/6D, 8/6E, and 8/6EE heavy-duty pumps. There are some difference with the shaft end parts, but the wet parts are same can be interchangeable and replace like the following spares:

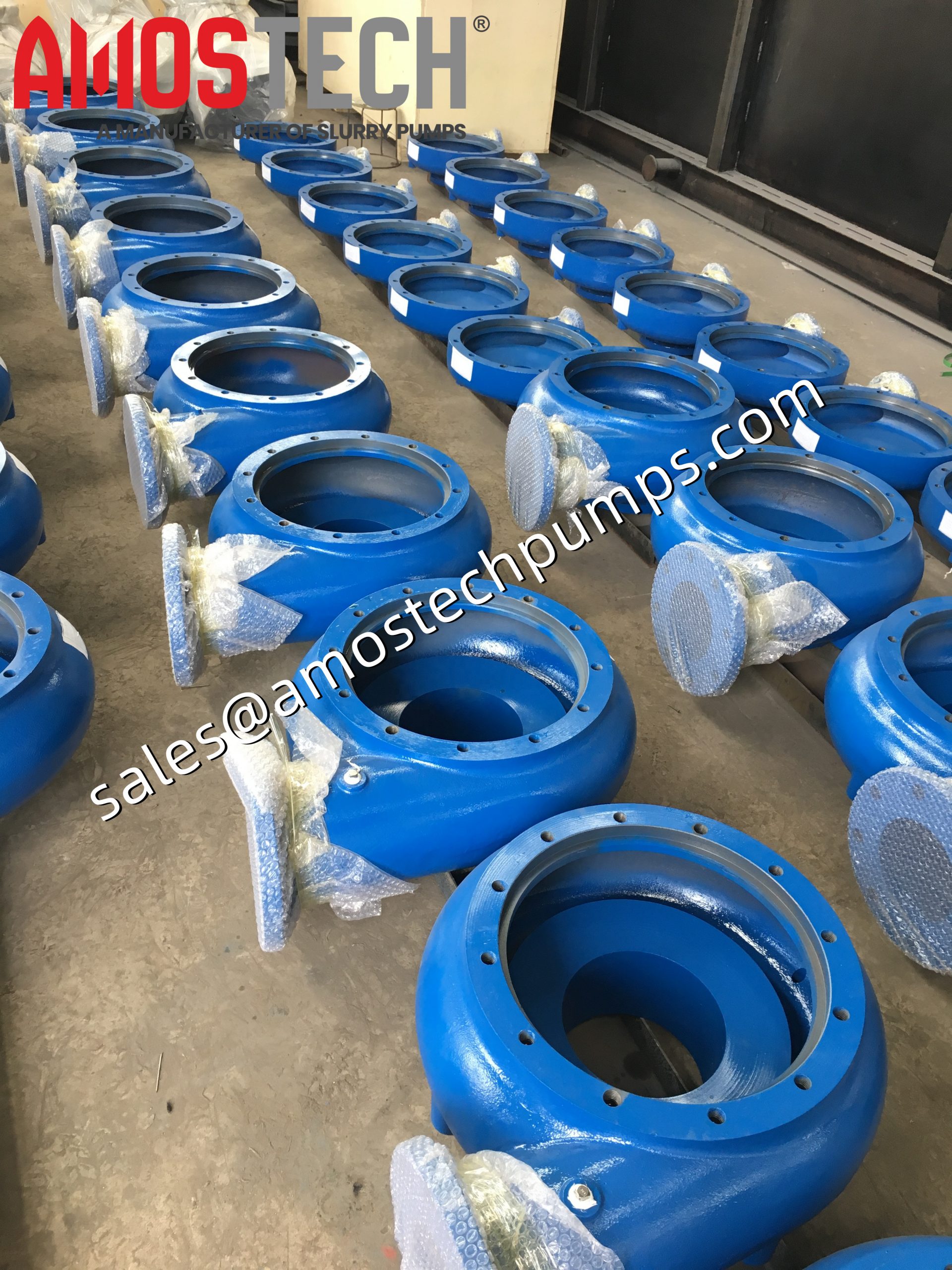

8/6E-AH Slurry pump wet part impeller F4147A05;

8/6 EAH Slurry pump wearing part volute liner F4110A05;

8/6E-AH Slurry pump spare part throatbush F4083A05;

8/6 EAH Slurry pump F.P.L Insert F4041MA05.

8/6E Slurry pump shaft seal part Expeller Ring FAM029A05;

8/6 EAH sand pump shaft seal spare part Expeller Ring F029A05.

The post 8 units of 8/6E-AH Slurry pump wet parts to A Copper Mine in Peru appeared first on AVAengineering.

^{AVA Engineering®} Polyurethane Slurry Pump Parts are widely used for 1.5/1B-AH Slurry Pump, 2/1.5B-AH Slurry Pump, 3/2C-AH Slurry Pump, 4/3D-AH Slurry Pump, 6/4E-AH Slurry Pump, 8/6E-AH Slurry Pump, 10/8ST-AH Slurry Pump, 12/10ST-AH Slurry Pump, 14/12ST-AH Slurry Pump, 16/14TU-AH Slurry Pump, 300S-L Slurry Pump, 350S-L Slurry Pump, 400ST-L Slurry Pump etc.

The post what is the slurry pump polyurethane parts? appeared first on AVAengineering.

The post Vertical slurry pump introduction appeared first on AVAengineering.

The post Expeller Seal Slurry Pump Parts appeared first on AVAengineering.

Pump Model : 6X4 EE -AHE Material : Throut bush / Impeller : High chrome Alloy Cr 30% A61 Back liner / Volute : High Chrome Alloy Cr26 A05 Shaft Sleeve : D075 J04 (Ceramica Cated Shaft Sleeve) Expeller Ring/ Expeller: High Chrome Alloy A05 Seal Type : High Seal Motor : 4- 160kw Drive type : DCz Drive Supply Range : Pump, Motor, Base plate, Coupling, Guard

041: Frame Plate Liner Insert–E4041EPA61 147: Impeller –E4147EPA61 110: Volute Liner–E4110EPA61 083: Throatbush–E4083EPA61

The post Slurry Pump spare parts for Mining Tailings appeared first on AVAengineering.
